- Electro Harmonix 16 Second Delay page

Over the years I've repaired a number of these wonderful little delay units.Though I no longer service them, I do have a lot of experience with them and some documentation. I'll add to this area as I think of things I've left out.

Parts
Troubleshooting Tips
Switch/Remote Reader Circuit
Repairs - Visit www.myspace.com/cjlectronics

ElectroHarmonix 16 Second Delay Drawings

(be warned, they are rough):

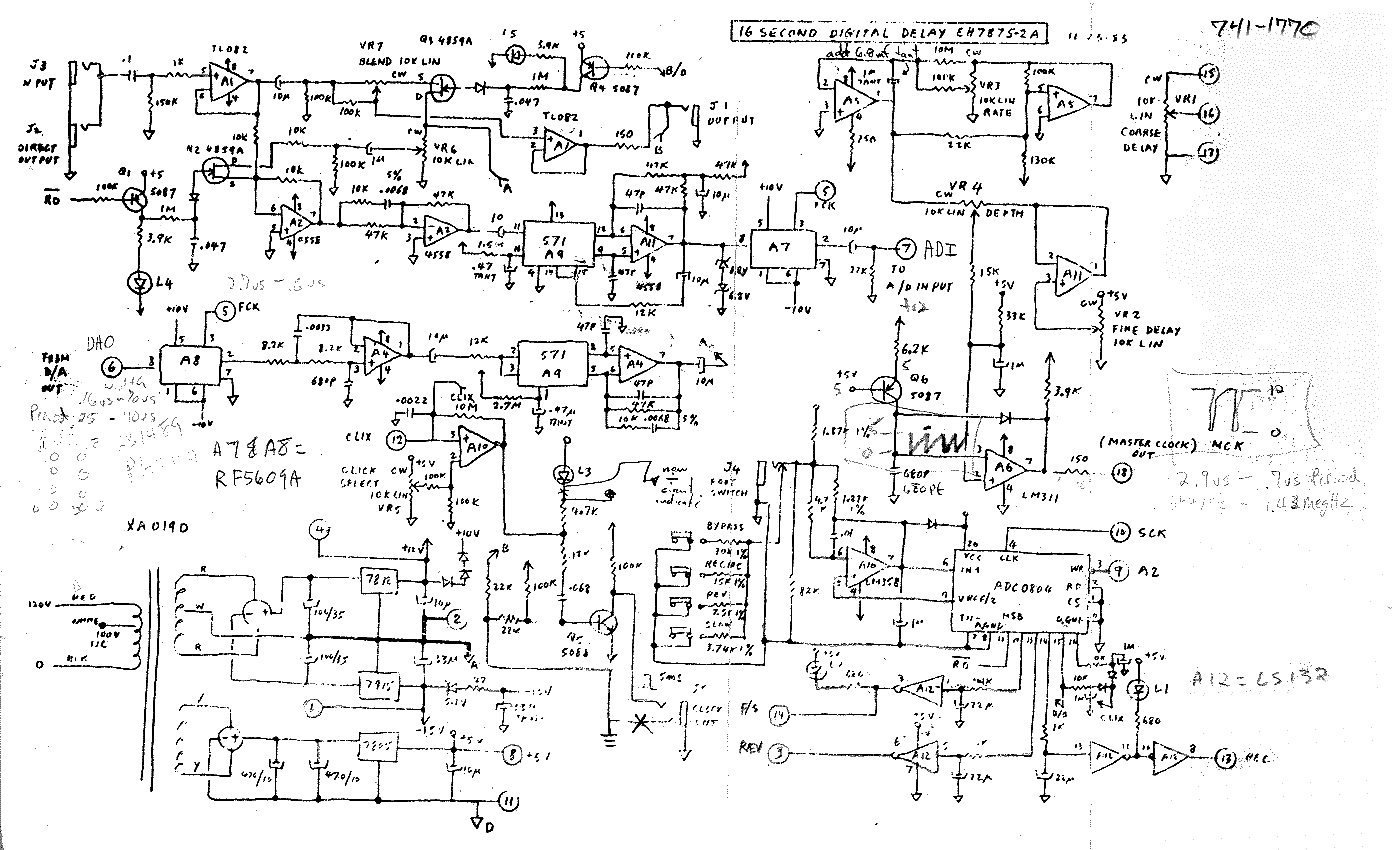

-	Analog Circuitry

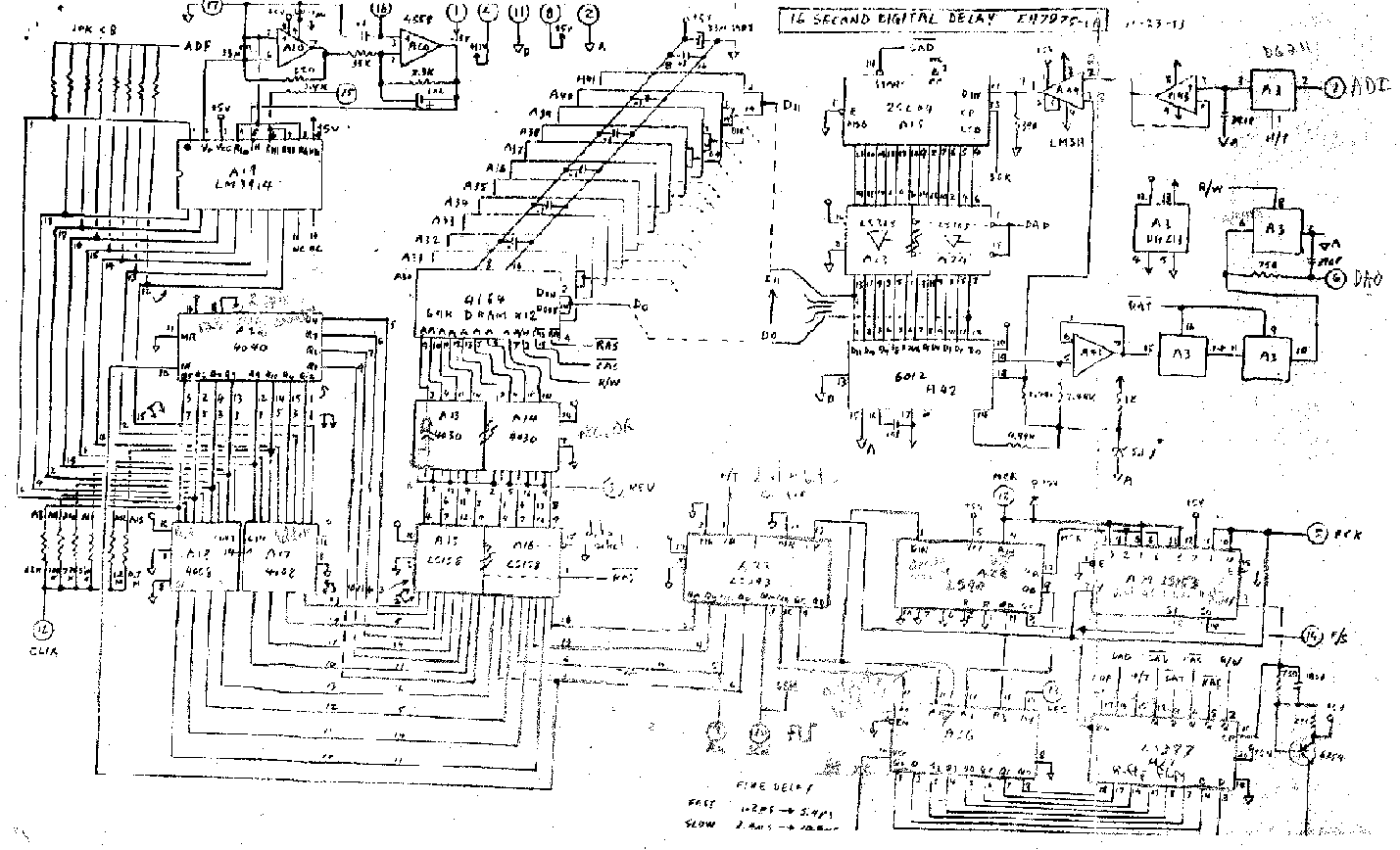

-	Digital Circuitry

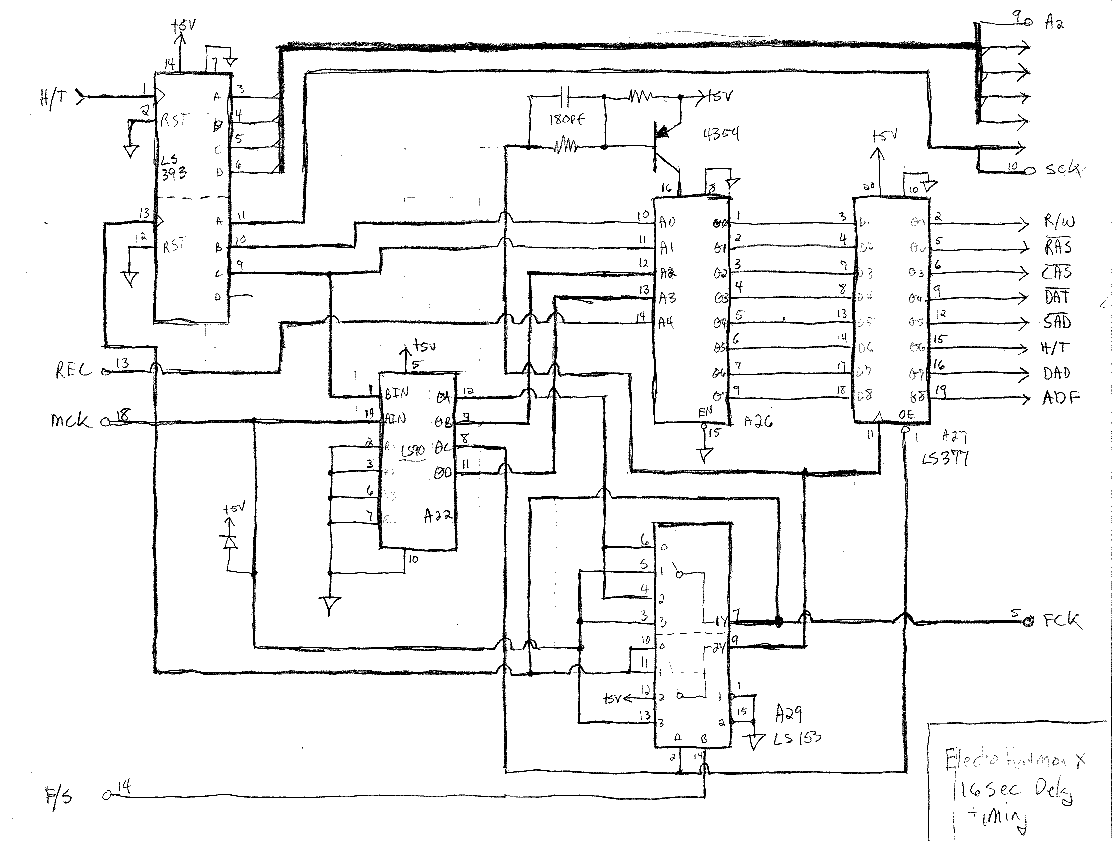

-	Redrawn Timing Circuit
-	Redrawn Footpedal Interface Circuit

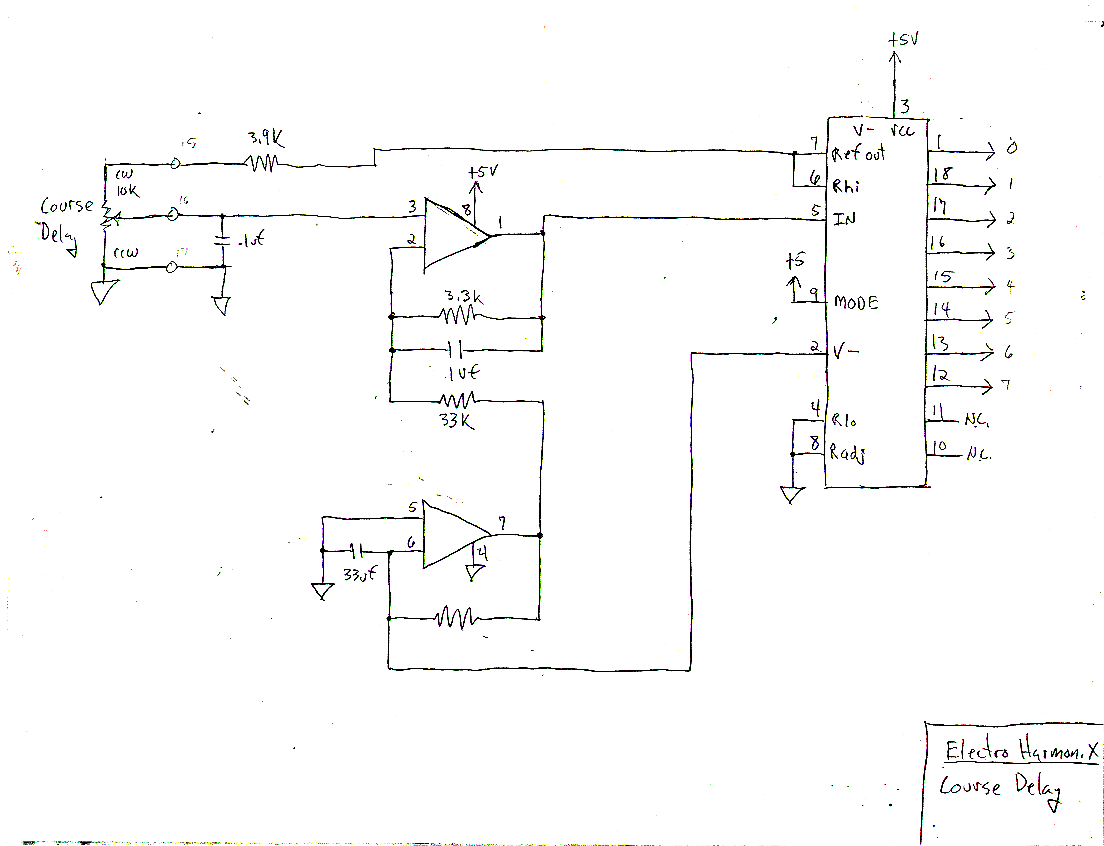

-	Redrawn Coarse Delay Circuit

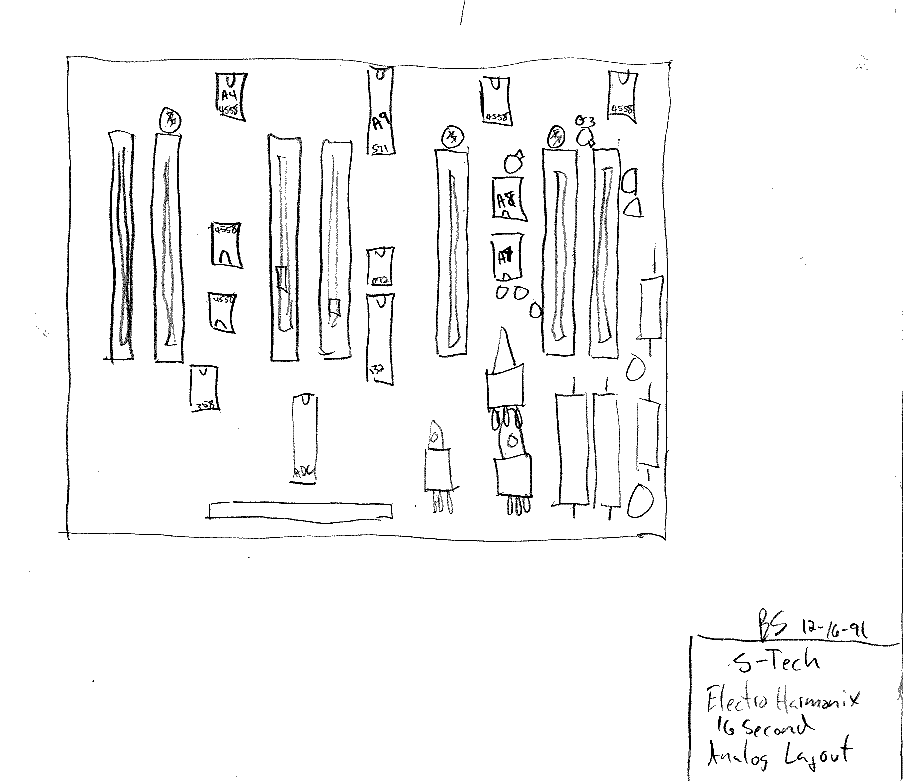

-	Analog Board Layout

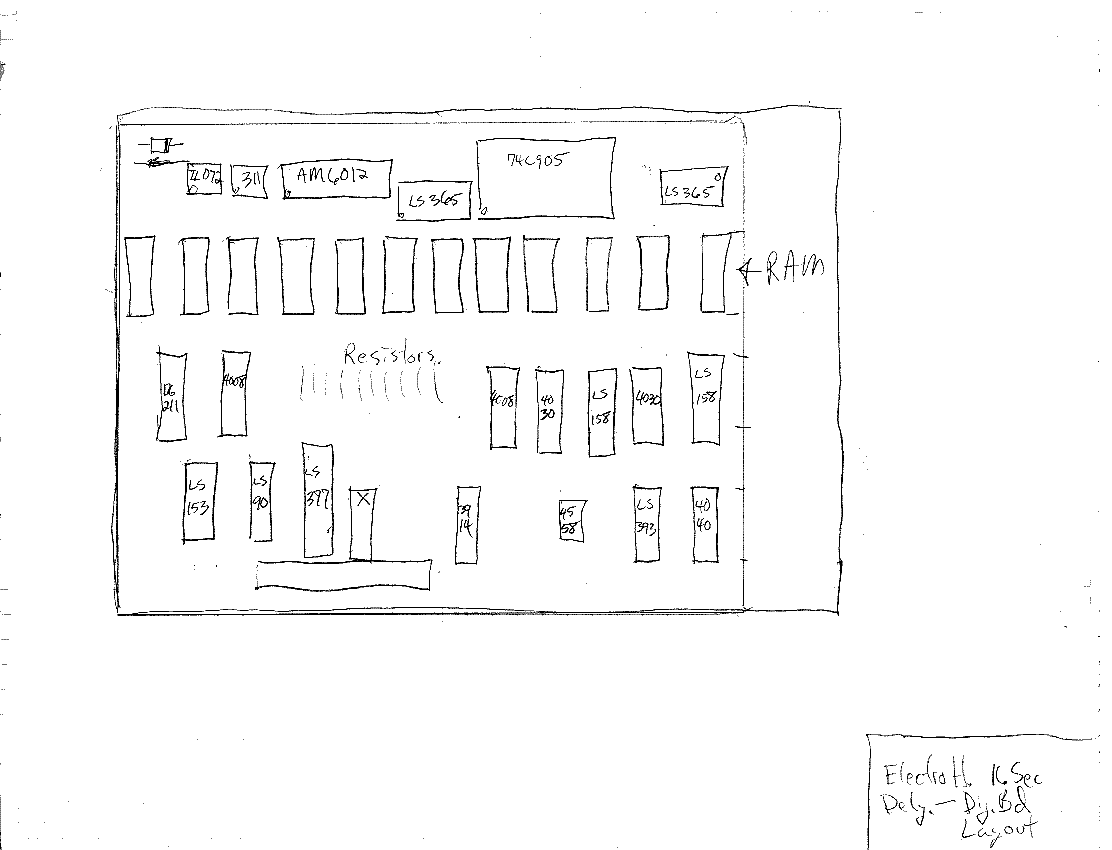

-	Digital Board Layout

Send questions to "Ask Bob".
